Brand: GUOXING FENCE
Surface: Hot Dip Galvanized
Features: Customizable
Nearest port: Tianjin Xingang

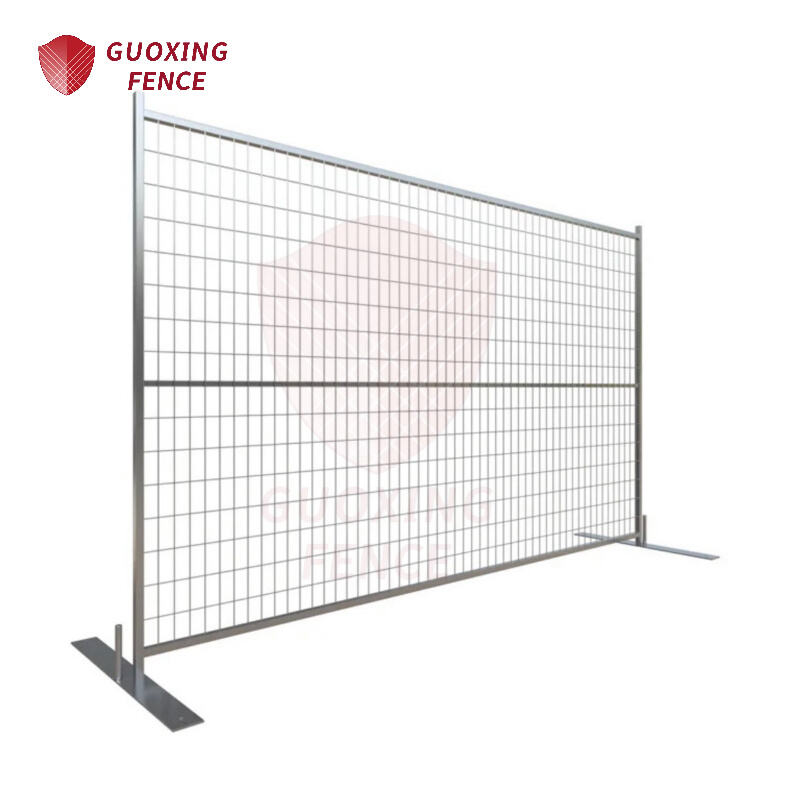

Canada temporary fence is a made of welded wire mesh panel and square pipes. And there is a square pipe in the middle of welded wire mesh panel to support it and make it more strength. And it can be powder coated, galvanized or Hot dip galvanized.
| NO. | Type | Specification | 40HC capacity | 20ft capacity |
| 1 | Ordinary | Fence size: 6ft *9.5ft Wire dia: 3.0 mm Mesh open size: 55*100mm Vertical Tube O.D.: 25*25mm Horizontal Tube O.D.: 20*20mm Surface: Power coated Or Hot Dip Galvanized Hot galvanized metal base: L890*W86*TH 4.5mm One sets include one panel and one base and one clip | 540 Sets | 240 Sets |
| 2 | Mid-Range | Fence size :6ft *9.5ft Wire dia: 3.5 mm Mesh open size: 55X100mm Vertical Tube: 30*30mm Horizontal Tube: 25*25mm Surface: Power coated Or Hot Dip Galvanized Hot galvanized metal base: L860*W100*TH 7.5mm One sets include one panel and one base and one clip | 440 Sets | 200 Sets |
| 3 | High Grade | Fence size: 6ft *9.5ft Wire dia: 4.0 mm Mesh open size: 55X100mm Vertical Tube: 30*30mm Horizontal Tube: 25*25mm Surface: Power coated Or Hot Dip Galvanized Hot galvanized metal base: L860*W100*TH 7.5mm One sets include one panel and one base and one clip | 440 Sets | 200 Sets |
| Panel Size (H*W) | Wire Diameter | Mesh Open | Horizontal Tube | Vertical Tube | Tube Thickness | Fence Feet (L*W*TH) | Surface Treatment |

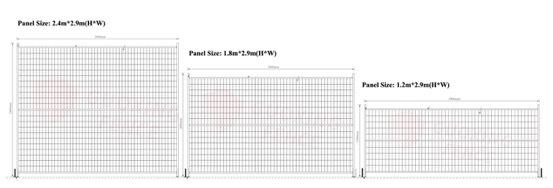

| 4ft*9.5 ft 6ft*9.5 ft 8ft*9.5 ft | 3.0mm 3.5mm 4.0mm | 55*100mm 50*150mm | 25*25mm 30*30mm | 20*20mm 25*25mm | 1.0mm 1.2mm 1.5mm 1.8mm 2.0mm | 890*86*4.5mm 860*100*7.5mm | Powder Coated Hot Dip Galvanized Galvanized |
| * Support to customize, if you need, please send customized requirements to us | |||||||
